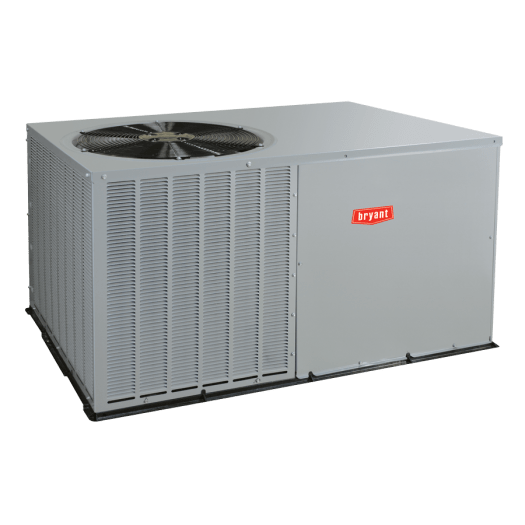

Base Line Heat Pump Systems
PH4Z
Base Line Heat Pump Systems PH4Z
The Space-saving, Easy on Your Budget Choice
Our most affordable packaged comfort systems, Base Line heat pumps deliver dependable comfort for your manufactured or zero lot line home. So even though space may be at a premium, your comfort doesn't have to be.
- System Type :
- Heat Pumps
- COOLING EFFICIENCY :
- 13.4 SEER2
- HEATING EFFICIENCY :
- 6.7 HSPF2
- Compressor Type :
- Single-Stage
Features
- Enjoy cool, summer comfort with 13.4 SEER2 and 11 EER2 cooling efficiency
- Transition to winter with heating efficiency of up to 6.7 HSPF2
- Compact cabinet is designed for limited space applications, including manufactured housing
- Galvanized steel cabinet with "coil on top" design for lasting durability against the elements
- Louvered grille protects the coil against physical damage
- Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
Specifications
EFFICIENCY MANAGEMENT
Energy Efficiency 13.4 SEER2/ 11 EER2, 6.7 HSPF2 electric heating
Heating and Cooling Stages Single-stage operation
SOUND
Quiet Levels During most common cooling operating condition: 73 dB
CONVENIENCES
Filter Change Reminders With compatible control
TECHNOLOGY
Blower Motor High-efficiency fixed-speed
Compressor Single-stage scroll
Compressor Single-stage scroll
Refrigerant Puron ® refrigerant
Coil Corrosion-resistant aluminum coil design
Capacity 2-5 tons
AESTHETICS
Design Narrow lot design
Construction Galvanized steel with high-tech composite (rust-free) base
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
- Enjoy cool, summer comfort with 13.4 SEER2 and 11 EER2 cooling efficiency
- Transition to winter with heating efficiency of up to 6.7 HSPF2
- Compact cabinet is designed for limited space applications, including manufactured housing
- Galvanized steel cabinet with "coil on top" design for lasting durability against the elements
- Louvered grille protects the coil against physical damage
- Solid cabinet base panels help prevent infiltration of dirt, debris and moisture
- 10-year parts limited warranty upon registration1
1To the original owner, when product is used in a residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
EFFICIENCY MANAGEMENT
Energy Efficiency 13.4 SEER2/ 11 EER2, 6.7 HSPF2 electric heating
Heating and Cooling Stages Single-stage operation
SOUND
Quiet Levels During most common cooling operating condition: 73 dB
CONVENIENCES
Filter Change Reminders With compatible control
TECHNOLOGY
Blower Motor High-efficiency fixed-speed
Compressor Single-stage scroll
Compressor Single-stage scroll
Refrigerant Puron ® refrigerant
Coil Corrosion-resistant aluminum coil design
Capacity 2-5 tons
AESTHETICS
Design Narrow lot design
Construction Galvanized steel with high-tech composite (rust-free) base
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
