Evolution™ Light Commercial Heat Pump

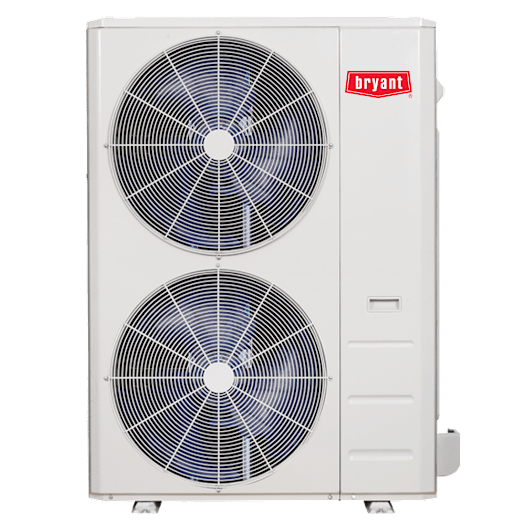

Evolution™ Light Commercial Heat Pump 37MBHA
A PERFECT BALANCE BETWEEN BUDGET LIMITS, ENERGY SAVINGS AND COMFORT
The 37MBHAQ heat pump can be matched with an indoor fan coil to provide reliable cooling and heating performance at low sound levels. This unit can operate in a wide range of outdoor temperatures, providing year-round comfort regardless of the temperature outside.
- Energy Star® Qualified :
- Select sizes are qualified
- COOLING EFFICIENCY :
- Up to 21.3 SEER2
- HEATING EFFICIENCY :
- Up to 11.1 HSPF2
Features
- Inverter Compressor
- Up to 21.3 SEER2 cooling efficiency
- Up to 11.1 HSPF2 heating efficiency
- Available in 208/230V
- Sizes 36, 48 & 58
- Built-in basepan heater
- Piping length: 246 ft (75 m)
- Quiet outdoor sound operation, as low as 62.5 decibels1
- 46° F heating mode (heating setback)
- Compatible with Puron Advance™ refrigerant. With Puron Advance refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
- 10-year parts limited warranty upon timely registration.2
- Compatible units: Air Handler, 1-Way Cassette, 4-Way Cassette, Air Handler, Ceiling and Floor Console, High Static Slim Duct, Floor Console
1Quietest size within each model group during most common cooling operating condition.
2If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
Specifications
EFFICIENCY MANAGEMENT
- Energy Efficiency Up to 21.3 SEER2/up to 12 EER2/up to 11.1 HSPF2
- ENERGY STAR® Select sizes are ENERGY STAR® certified based on indoor unit pairing
COMFORT MANAGEMENT
- Cooling Operating Range -22° F up to 122° F (-30° C up to 50° C)
- Heating Operating Range -22° F up to 75° F (-30° C up to 24° C)
SOUND
- Quiet Levels as low as 62.5 dB(A)1
TECHNOLOGY
- Compressor Inverter
- System Capacity 36, 48 & 58
- Voltage 208/230V
AESTHETICS
- Construction Durable, heavy gauge galvanized steel
- Paint Baked-on, powder paint
- Line Length Up to 213 ft.
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1Quietest size within each model group during most common cooling operating condition.
- Inverter Compressor
- Up to 21.3 SEER2 cooling efficiency
- Up to 11.1 HSPF2 heating efficiency
- Available in 208/230V
- Sizes 36, 48 & 58
- Built-in basepan heater
- Piping length: 246 ft (75 m)
- Quiet outdoor sound operation, as low as 62.5 decibels1
- 46° F heating mode (heating setback)
- Compatible with Puron Advance™ refrigerant. With Puron Advance refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
- 10-year parts limited warranty upon timely registration.2
- Compatible units: Air Handler, 1-Way Cassette, 4-Way Cassette, Air Handler, Ceiling and Floor Console, High Static Slim Duct, Floor Console
1Quietest size within each model group during most common cooling operating condition.
2If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
EFFICIENCY MANAGEMENT
- Energy Efficiency Up to 21.3 SEER2/up to 12 EER2/up to 11.1 HSPF2
- ENERGY STAR® Select sizes are ENERGY STAR® certified based on indoor unit pairing
COMFORT MANAGEMENT
- Cooling Operating Range -22° F up to 122° F (-30° C up to 50° C)
- Heating Operating Range -22° F up to 75° F (-30° C up to 24° C)
SOUND
- Quiet Levels as low as 62.5 dB(A)1
TECHNOLOGY
- Compressor Inverter
- System Capacity 36, 48 & 58
- Voltage 208/230V
AESTHETICS
- Construction Durable, heavy gauge galvanized steel
- Paint Baked-on, powder paint
- Line Length Up to 213 ft.
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1Quietest size within each model group during most common cooling operating condition.
