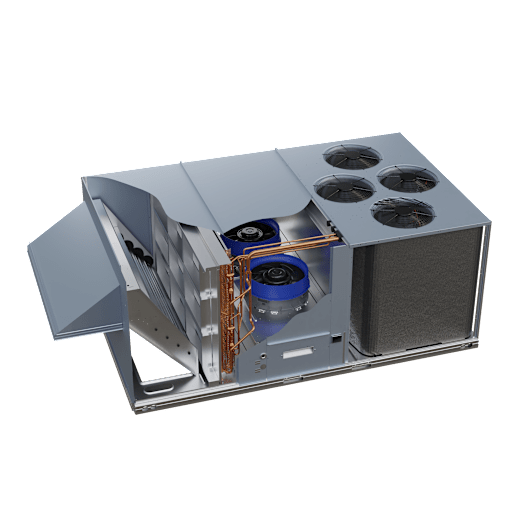

Preferred Series™ Puron Advance™ Single-Packaged Hybrid Heat Rooftop Unit

549Q

Hybrid Heat Rooftop with Axion™ Technology

Bryant's WeatherMaster® rooftops unit with Puron Advance™ and Axion™ Fan Technology offers an environmentally sustainable solution for a brighter future. The direct drive Axion™ indoor fan system uses a Vane Axial fan and electronically commutated motor. The benefit is clear: when compared to legacy belt drive systems, this Vane Axial design has 75% fewer moving parts, uses up to 40% less energy, and has no belts, blower bearings, or shaft. The 48QE offers a heat pump compression system with auxiliary gas heaters. All units come standard with stainless steel gas heat exchangers and controls. Units can operate as a heat pump, hybrid heat unit (gas and heat pump simultaneously) or as a gas heat unit when ambient temperatures dip below the low ambient cutoff.

FIND A DEALER

Features

Puron Advance™ refrigerant meets and exceeds EPA’s new low GWP requirements
Digital controller included standard to allow for adjustable gas changeover setpoints, flexible operation and either thermostat or DDC control
New – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard
Direct Drive Axion™ Technology indoor fan system uses Vane Axial fan design & electronically commutated motor
Two-stage cooling capacity control on all models
Cooling operating range up to 125 °F (52°C) and down to 40°F (-4°C).
Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
Exclusive IGC solid-state control for on-board diagnostics with LED error code designation, burner control logic and energy saving indoor fan motor delay
Units meet and exceed ASHRAE 90.1 energy efficiency levels.

Maintenance Features

Large access panels with easy grip handles
Innovative, easy starting, no-strip screw feature on unit access panels
Two-inch disposable return air filters
Tool-less filter access door
New Vane Axial evaporator-fan system has no fan belts, pullies, blower shaft and blower bearings with slide out design
Control includes onboard diagnostics with alert and alarm LEDs

Reliability Features

A2L leak detection and dissipation system standard
Highly protected Tandem Scroll compressors with internal line-break overload protection
24-volt control circuit protected with resettable circuit breaker
Permanently lubricated evaporator-fan motor
Totally enclosed condenser motors with permanently lubricated bearings
Loss of charge, freeze protection, and high-pressure switches
Exclusive IGC anti-cycle protection for gas heat operation
Solid-state electronic direct spark ignition system
Flame roll-out safety protector
Liquid line filter drier on each circuit

Standard Limited Warranty

15 years parts only heat exchanger - stainless steel
5 years parts only compressor
3 year controller
One year parts only on all other parts
Additional extended warranty packages available

Specifications

PERFORMANCE

Efficiency Up to IEER up to 17.0, COP up to 3.5

INSTALLATION

Same footprint as prior Carrier models for that original fit; reduces installation costs and time
Available in vertical and horizontal airflow configurations
Provisions for thru-the-bottom power entry capability as standard
Single point electric, gas, and controls connections available
Full perimeter base rail with built-in rigging adapters and fork truck slots

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
