Understanding The Importance of Heat Exchangers
A heat exchanger is the critical component within your HVAC system responsible for transferring thermal energy from one fluid to another to heat or cool your home. It acts as a safety barrier, ensuring the air you breathe never mixes with combustion gases or chemical refrigerants.
Think of the heat exchanger as the heart of your home's climate control. Just as your heart pumps blood to keep you alive, the heat exchanger cycles energy to keep your living space comfortable. Understanding how this component works helps you optimize your home for energy efficiency and safeguards your family against potential hazards like carbon monoxide leaks.

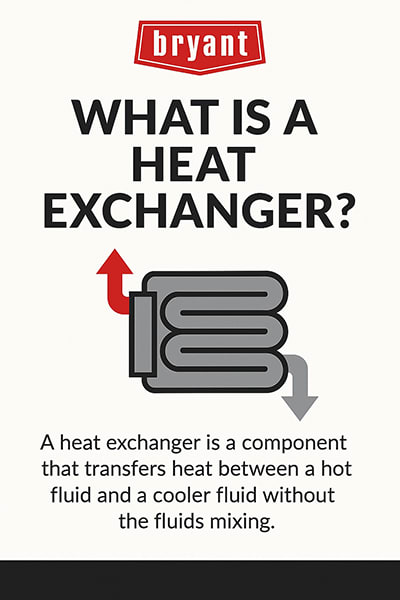

What is a Heat Exchanger?
A heat exchanger is a device constructed from conductive materials—typically metal shells or tubes—that allows heat to pass from a hot fluid to a cold fluid without the two fluids coming into direct contact. In residential HVAC systems, it is the primary mechanism for regulating indoor temperature.
The Science of Comfort
Heat exchangers operate on the principles of thermodynamics. Heat naturally flows from a warmer object to a cooler one. A heat exchanger facilitates this flow using conductive materials—typically metal tubes or shells—to move energy.
- In heating mode: It transfers heat from combustion gases (in a furnace) to the air circulating through your ducts.
- In cooling mode: It transfers heat from your indoor air to a refrigerant (in an air conditioner), which then carries the heat outside.
Whether your system uses a plate, shell and tube, or finned-tube design, the integrity of this component is vital for maintaining lower energy bills and long-term system reliability.
How Heat Exchangers Work in HVAC systems
Heat exchangers function by creating a thermal bridge across a solid barrier, allowing energy to transfer while keeping the air and refrigerant (or exhaust) separate.
Heating Mode
In a furnace, the heat exchanger is the barrier between the fire and your fresh air.
- Combustion: The furnace burns fuel to create hot combustion gases inside the heat exchanger.
- Transfer: The metal walls of the exchanger absorb this intense heat.
- Circulation: Your blower fan pushes cool household air over the outside of the hot metal walls. The air absorbs the heat and circulates through your home, while the toxic combustion gases are safely vented outside.
Cooling Mode
In an air conditioner or heat pump, the process reverses to remove heat.
- Absorption: The indoor heat exchanger (evaporator coil) absorbs heat from the warm indoor air into the refrigerant.
- Transport: The refrigerant pumps this heat to the outdoor unit.
- Release: The outdoor heat exchanger (condenser coil) releases the trapped heat into the outside air.
Signs of a Cracked or Failing Heat Exchanger
A cracked heat exchanger is a severe safety hazard that can allow invisible, odorless carbon monoxide to leak into your living space. If you observe any of the following signs, shut down your system and contact a professional immediately:- Soot Buildup: Black soot inside the furnace cabinet.
- Strange Smells: Unpleasant odors often described as formaldehyde or sulfur.
- Physical Damage: Visible cracks or corrosion on the metal components.
- Health Symptoms: Headaches, nausea, or flu-like symptoms when the heat is running (signs of CO poisoning).
- Water Leaks: Pools of water around the base of the furnace.
Common Types of Heat Exchangers
HVAC systems utilize specific designs to maximize surface area and thermal transfer efficiency.
- Air-to-Air: The most common residential type. It transfers heat between two air streams—one inside your ducts and one external.
- Fin-and-Tube: Often found in air conditioners, these feature metal fins attached to tubes carrying refrigerant. The fins increase the surface area, allowing air to absorb or release heat more rapidly.
- Shell and Tube: A robust design typically used in larger or industrial applications. One fluid flows through a set of tubes enclosed within a large shell containing the second fluid.
- Water-to-Air: Common in boiler systems or hydronic heat pumps, transferring energy between heated water and circulating air.
Heat Exchanger Maintenance and Troubleshooting
Proactive maintenance is the most effective way to extend the lifespan of your heat exchanger and ensure your energy efficiency pays off.
Keep Airflow Unrestricted
The leading cause of premature failure is overheating caused by restricted airflow. When filters are clogged, the heat exchanger overheats, causing the metal to expand and contract aggressively, eventually leading to cracks.
- Action: Change your air filters every 1-3 months.
Schedule Annual Inspections
Regular HVAC maintenance by a certified technician is non-negotiable for safety. Professionals can spot hairline cracks or early rust that an untrained eye might miss.
Monitor Efficiency
If your energy bills are spiking without a change in weather or usage, your heat exchanger may be struggling to transfer energy effectively due to dirt or debris buildup..
Choosing the Right Replacement
If your heat exchanger has failed, selecting the right replacement balances upfront investment with long-term performance.
- Material Matters: Stainless steel exchangers generally offer superior resistance to corrosion compared to aluminized steel, making them a smart investment for longevity.
- Correct Sizing: Precision is key. A unit that is too large will cycle frequently, causing wear, while an undersized unit cannot maintain comfort. Trust a professional to perform a load calculation.
Schedule an appointment with a Bryant dealer today to discuss the best options for your home.
Heat Exchanger FAQs
Replacing a heat exchanger typically costs between $1,500 and $3,000, including parts and labor, depending on the furnace model and complexity of the job. It’s best to get an exact quote from your local Bryant dealer.
When a heat exchanger goes bad, it can crack or corrode, potentially leaking carbon monoxide and causing the furnace to shut down for safety.
Common symptoms include strange odors, soot buildup, visible cracks, increased carbon monoxide levels, and inconsistent or reduced heating performance.
In most cases, repairing a heat exchanger is not cost-effective, especially if the furnace is older—replacing the entire furnace may be a better long-term investment.
A heat exchanger is a metal component inside a furnace that transfers heat from combustion gases to indoor air while keeping the air and exhaust separate.
Most heat exchangers last around 15 to 20 years, depending on furnace maintenance and usage.
It should be replaced if cracked, corroded, or leaking, as damage can affect safety and efficiency. A qualified HVAC technician can confirm if replacement is necessary
