Legacy Line Puron Advance™ Single-Packaged Rooftops Units with Axion™ Technology

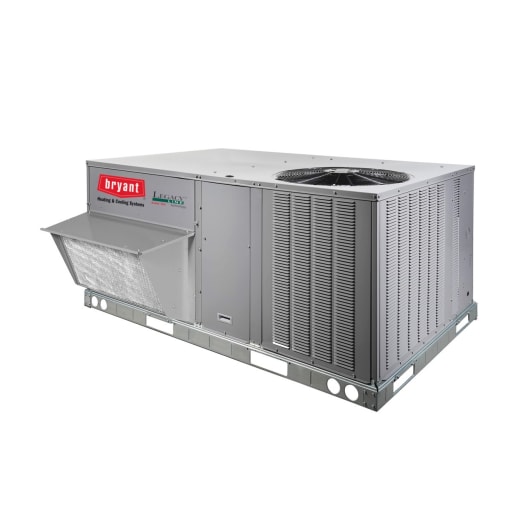

Legacy Line Puron Advance™ Single-Packaged Rooftops Units with Axion™ Technology 547L
Heat Pump with EcoBlue™ Technology 3 to 25 Nominal Tons
Bryant’s Legacy Line™ rooftops (RTU) with Puron Advance™ (R-454B) and Axion™ Fan Technology, offer an environmentally sustainable for a brighter future. With a GWP of 466 and similar performance to R-410A, Puron Advance easily exceeds the EPA's new, stringent, <700 GWP refrigerant requirement. Our direct drive Axion™ indoor fan system uses a Vane Axial fan and electronically commutated motor. The benefit is clear: when compared to legacy belt drive systems, this Vane Axial design has 75% fewer moving parts, uses up to 40% less energy, and has no belts, blower bearings, or shaft. Our Legacy Line™ 547L units are designed to be a direct replacement for many existing rooftops. That makes replacements fast and easy, eliminating the need for curb adapters or different utility connections.
Product Certifications: AHRI, UL
- SEER Rating :
- Up to 13.4 SEER2
- HSPF :
- Up to 6.7 HSPF2
Product Features
Performance Features
- Puron Advance (R-454B) refrigerant meets and exceeds EPA’s new Low GWP requirements
- New unit control board with intuitive quick fan speed adjustment
- New – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard
- Direct Drive Axion™ Technology indoor fan system uses Vane Axial fan design & electronically commutated motor
- Single-stage cooling capacity 04-06 models, two-stage on 07+ models
- SEER2 up to 13.4, HSPF2 up to 6.7
- IEER up to 15.0, COP up to 3.6
- Cooling operating range up to 115 °F (46°C) and down to 40°F (4°C)
- Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
- Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
- Units meet and exceed ASHRAE 90.1 energy efficiency levels.
Maintenance Features
- New unit control board facilitating simple safety circuit troubleshooting and simplified control box arrangement as well as easy intuitive fan speed adjustment
- Access panels with easy grip handles
- Innovative, easy starting, no-strip screw feature on unit access panels
- Tool-less filter access door
- Optional hinged access panels also available
- NEW Direct Drive – Axion™ Technology Indoor fan system uses Vane Axial fan design and electronically commutated motor with beltless design
- Two-inch disposable return air filters
Installation Features
- Same footprint as prior Carrier models for that original fit; reduces installation costs and time
- Field convertible from vertical to horizontal airflow configuration
- Provisions for thru-the-bottom power entry capability as standard
- Single point electric, and controls connections
- Full perimeter base rail with built-in rigging adapters and fork truck slots
Reliability Features
- A2L leak detection and dissipation system standard
- Scroll compressors with internal line-break overload protection
- 24-volt control circuit protected with resettable circuit breaker
- Permanently lubricated direct-drive ECM evaporator-fan motor
- Totally enclosed condenser motors with permanently lubricated bearings
- Low pressure and high-pressure switch protection
Standard Limited Warranty
- 5 years electric heaters
- 5 years parts only compressor
- One-year parts only on all other parts
- Additional extended warranty packages available
Product Options
Factory-Installed Options
- Temperature Sensing Economizer with barometric relief
- Enthalpy Sensing Economizer with barometric relief
- Return Air Smoke Detector
- Supply Air Smoke Detector
- CO2 Sensor
- Condensate Overflow Protection
- Multiple Static Fan Capabilities
- Thru-The-Base Utility Connections
- Louvered Hail Guards
- Non-Fused Disconnect Switch
- Hinged Access Panels
- Unpowered Convenience Outlet
- Powered Convenience Outlet
- Coated Coils:
- Pre-Coat
- E-Coat
- Copper/Copper
- Electrical Mechanical Controls
Performance Features
- Puron Advance (R-454B) refrigerant meets and exceeds EPA’s new Low GWP requirements
- New unit control board with intuitive quick fan speed adjustment
- New – UL 60335-2-40 Certified A2L leak detection and dissipation system factory installed standard
- Direct Drive Axion™ Technology indoor fan system uses Vane Axial fan design & electronically commutated motor
- Single-stage cooling capacity 04-06 models, two-stage on 07+ models
- SEER2 up to 13.4, HSPF2 up to 6.7
- IEER up to 15.0, COP up to 3.6
- Cooling operating range up to 115 °F (46°C) and down to 40°F (4°C)
- Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
- Pre-painted exterior panels and primer-coated interior panels tested to 500 hours salt spray protection
- Units meet and exceed ASHRAE 90.1 energy efficiency levels.
Maintenance Features
- New unit control board facilitating simple safety circuit troubleshooting and simplified control box arrangement as well as easy intuitive fan speed adjustment
- Access panels with easy grip handles
- Innovative, easy starting, no-strip screw feature on unit access panels
- Tool-less filter access door
- Optional hinged access panels also available
- NEW Direct Drive – Axion™ Technology Indoor fan system uses Vane Axial fan design and electronically commutated motor with beltless design
- Two-inch disposable return air filters
Installation Features
- Same footprint as prior Carrier models for that original fit; reduces installation costs and time
- Field convertible from vertical to horizontal airflow configuration
- Provisions for thru-the-bottom power entry capability as standard
- Single point electric, and controls connections
- Full perimeter base rail with built-in rigging adapters and fork truck slots
Reliability Features
- A2L leak detection and dissipation system standard
- Scroll compressors with internal line-break overload protection
- 24-volt control circuit protected with resettable circuit breaker
- Permanently lubricated direct-drive ECM evaporator-fan motor
- Totally enclosed condenser motors with permanently lubricated bearings
- Low pressure and high-pressure switch protection
Standard Limited Warranty
- 5 years electric heaters
- 5 years parts only compressor
- One-year parts only on all other parts
- Additional extended warranty packages available
Factory-Installed Options
- Temperature Sensing Economizer with barometric relief
- Enthalpy Sensing Economizer with barometric relief
- Return Air Smoke Detector
- Supply Air Smoke Detector
- CO2 Sensor
- Condensate Overflow Protection
- Multiple Static Fan Capabilities
- Thru-The-Base Utility Connections
- Louvered Hail Guards
- Non-Fused Disconnect Switch
- Hinged Access Panels
- Unpowered Convenience Outlet
- Powered Convenience Outlet
- Coated Coils:
- Pre-Coat
- E-Coat
- Copper/Copper
- Electrical Mechanical Controls
Documents
California residents please see Proposition 65
PHYSICAL DATA
| Nominal Cooling Ton Size | Cooling Stages | AHRI Efficiency (SEER2) IEER | Dimension (in) LxWxH | At 47°F | At 17°F | Approx. Unit Weight (lbs) | ||
|---|---|---|---|---|---|---|---|---|
| Heating Capacity (Btuh) | (HSPF) COP | Heating Capacity (Btuh) | (HSPF) COP | |||||
| 3 | 1 | (13.4) | 74 x 47 x 33 | 34000 | 3.60 | 18000 | 2.10 | 467 |
| 4 | 1 | (13.4) | 74 x 47 x 33 | 45000 | 3.50 | 21000 | 2.00 | 473 |
| 5 | 1 | (13.4) | 74 x 47 x 33 | 56000 | 3.70 | 29000 | 2.20 | 584 |
| 6 | 2 | 15.0 | 74 x 47 x 41 | 63000 | 3.40 | 34500 | 2.25 | 589 |
| 7.5 | 2 | 15.0 | 88 x 59 x 49 | 84000 | 3.40 | 45000 | 2.25 | 805 |
| 8.5 | 2 | 15.0 | 88 x 59 x 49 | 90000 | 3.40 | 49000 | 2.25 | 867 |
| 10 | 2 | 15.0 | 88 x 59 x 49 | 112000 | 3.40 | 72000 | 2.25 | 955 |
| 12.5 | 2 | 15.0 | 115 x 63 x 57 | 133000 | 3.30 | 75000 | 2.05 | 1250 |
| 15 | 2 | 14.0 | 127 x 86 x 49 | 168000 | 3.30 | 100000 | 2.20 | 1627 |
| 20 | 2 | 14.0 | 141 x 86 x 57 | 234000 | 3.30 | 136000 | 2.20 | 2057 |
| 25 | 2 | 14.0 | 141 x 86 x 57 | 278000 | 3.30 | 156000 | 2.15 | 2125 |
AHRI = Air-Conditioning, Heating and Refrigeration Institute
ASHRAE = American Society of Heating, Refrigerating and Air Conditioning, Inc.
IEER = Integrated Energy Efficiency Ratio
SEER2 = Seasonal Energy Efficiency Ratio 2
HSPF2 = Heating Seasonal Performance Factor 2
COP = Coefficient of Performance
ASHRAE = American Society of Heating, Refrigerating and Air Conditioning, Inc.
IEER = Integrated Energy Efficiency Ratio
SEER2 = Seasonal Energy Efficiency Ratio 2
HSPF2 = Heating Seasonal Performance Factor 2
COP = Coefficient of Performance
NOTES
- Rated and certified under ARI Standard 210/240 3-5 ton or 340/360 6+ ton, as appropriate.
- Ratings are based on:
» Cooling Standard: 80°F (27°C) db, 67°F (19°C) wb indoor air temp and 95°F (35°C) db outdoor air temp. - 547L units comply with ASHRAE 90.1 Energy Standard. Please review size specific data for compliance.
- 547L units comply with US Energy Policy Act (2005). To evaluate code compliance requirements, refer to state and local codes or visit the following website: http://bcap-energy.org
