Air to Water Heat Pump Guide
By Travis Baugh | Expert Review By Michelle Notaro - Product Manager, Heat Pumps
What Is an Air to Water Heat Pump?
An air to water heat pump is an all-in-one HVAC system that extracts heat from outdoor air and transfers it to water, which is then circulated through your home for heating, cooling, and domestic hot water. Because these systems move heat rather than generate it through combustion, they are significantly more energy-efficient and environmentally friendly than traditional boilers or furnaces.

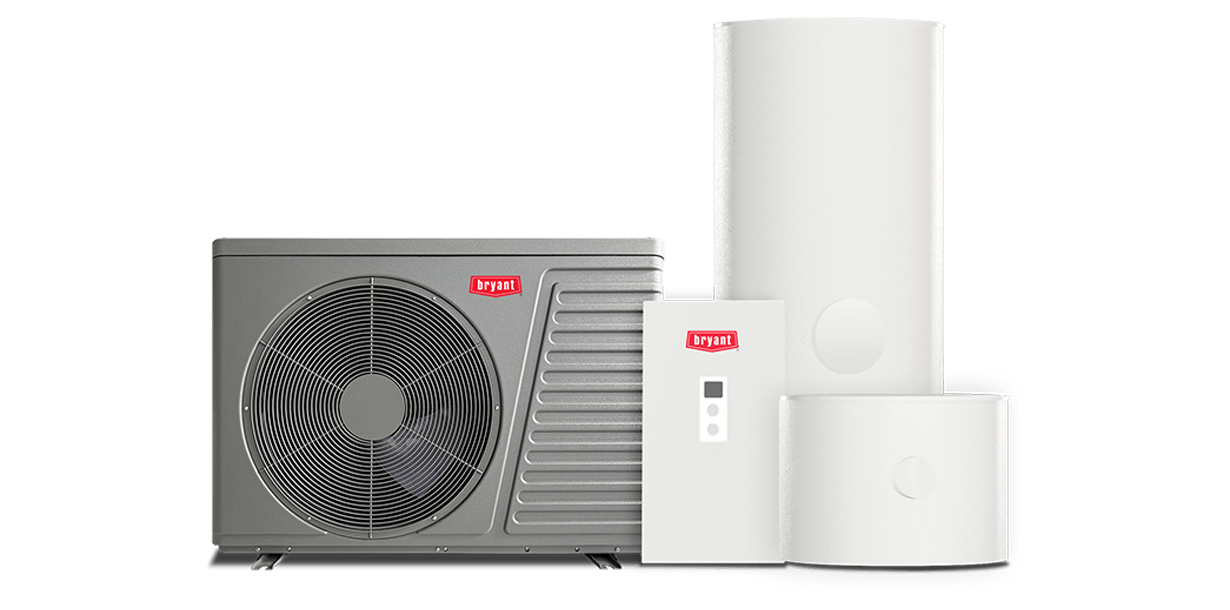

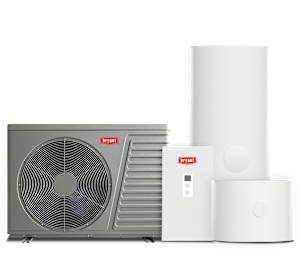

Bryant’s 33NM3 domestic hot water air-to-water heat pump is designed as a complete heating, cooling, and domestic hot water solution. The 33NM3 delivers up to 4.9 COP for heating and up to 16.8 EER for cooling, with a variable-speed rotary compressor and sound levels as low as 52 decibels.
How Does an Air to Water Heat Pump Work?
An air to water heat pump works by capturing thermal energy from outdoor air, using a compressor to raise that energy to a higher temperature, and transferring it to a water-based distribution system. That heated or chilled water then flows through hydronic systems—such as radiators or radiant floors—to regulate indoor climate.
Bryant's 33NM3 uses a four-step thermal transfer process to move heat between outdoor air, refrigerant, and water:
- Heat Absorption: The outdoor unit draws in air and extracts thermal energy, using an outdoor heat exchanger to transfer that energy to the refrigerant.
- Compression: The 33NM3's inverter-driven variable-speed rotary compressor increases the refrigerant's pressure and temperature.
- Water Heating: The heated refrigerant transfers thermal energy to water through a refrigerant-to-water brazed plate heat exchanger. The heated water can then be used for radiant, forced-air, or domestic hot water applications, depending on system configuration.
- Cooling Mode: In summer, the refrigeration cycle reverses to remove heat from the water and reject it outdoors, allowing the system to provide cooling through compatible indoor distribution equipment.
The Bryant 33NM3 is designed for multiple applications, including forced-air heating and cooling, radiant heating, chilled-water applications, driveway heating, and domestic hot water.
What Are the Benefits of an Air to Water Heat Pump?
The primary benefits of air to water heat pumps include high heat-pump efficiency, flexible water-based distribution, and the ability to combine multiple heating, cooling, and hot water applications in one system.
- Exceptional Energy Efficiency: Air to water heat pumps produce more heat energy than the electrical energy they consume, resulting in significant reductions in monthly energy usage. Bryant's 33NM3 has a rated heating efficiency of up to 4.9 COP. A COP of 4.9 means the system can deliver up to 4.9 units of heat energy for each unit of electrical energy consumed under the conditions used to establish that rating.
- All-in-One Solution: A single unit manages space heating, cooling, and domestic hot water needs, streamlining the mechanical room and saving valuable living space.
- Quiet Operation: Bryant air to water heat pumps are engineered for tranquil performance, keeping the home environment peaceful and free from loud mechanical noise. The Bryant 33NM3 has a published sound level as low as 52 dB during its lowest-capacity cooling operating condition.
- Eco-Friendly Performance: By utilizing renewable thermal energy from outdoor air, these systems reduce reliance on fossil fuels and significantly lower a home's overall carbon footprint.
The 4.9 COP rating should not be described as a direct percentage savings or efficiency comparison with a gas boiler. COP measures heat output relative to electrical energy input, while a gas boiler's AFUE measures the percentage of fuel energy converted to useful heat. For example, a 90% AFUE boiler converts about 0.90 units of useful heat per unit of gas consumed, while a heat pump with a COP of 4.9 delivers 4.9 units of heat per unit of electricity at the applicable rating conditions. Actual operating cost depends on electricity and fuel prices, system operating conditions, and climate.
Is an Air to Water Heat Pump Right for My Home?
An air to water heat pump is best suited for homes that already use—or plan to install—hydronic or other compatible water-based distribution systems, such as radiant floor heating or traditional radiators. The Bryant 33NM3 is also designed for forced-air applications and can be used in new construction or retrofit projects.
An air to water heat pump may be the right choice if you value:
- Long-Term Savings: You are looking for a high-efficiency heat pump that can help reduce energy consumption under appropriate operating conditions.
- Sustainable Living: You want to use electricity and ambient outdoor heat rather than relying exclusively on combustion for heating.
- Integrated Comfort: You want the flexibility of a system that can support heating, cooling, and domestic hot water applications.
- Quiet Operation: You prioritize a system with a published sound rating as low as 52 dB.
An air-to-water heat pump can be particularly useful when a home has compatible hydronic infrastructure, while an air-to-air heat pump may be a simpler option for homes with existing ductwork and no need for water-based heating or cooling.
How Much Does An Air-To-Water Heat Pump Cost To Install?
The cost to install an air-to-water heat pump varies significantly based on system capacity, existing infrastructure, installation complexity, and whether new plumbing, electrical, or hydronic distribution components are required. A Bryant dealer can provide an estimate based on your home's specific requirements.
For a Bryant 33NM3 installation, the total project cost depends on factors such as:
- Home size and heating requirements
- Equipment efficiency and capacity
- Existing plumbing and heating infrastructure
- Installation complexity and labor costs
- Whether domestic hot water equipment or additional distribution components are included
- Electrical upgrades or system modifications
A qualified HVAC professional can evaluate your home's heating setup and determine whether a Bryant 33NM3 or another heat pump configuration is an appropriate replacement option compared with an air-source heat pump, furnace, boiler, or other heating system.
Because air-to-water installations can vary significantly in scope, homeowners should request an itemized quote that identifies equipment, labor, electrical work, plumbing, distribution modifications, permits, and any applicable incentives.
Connect With A Bryant Dealer On Air To Water Heat Pumps
Ready to upgrade your home's comfort? Connect with your local Bryant dealer to determine if an air-to-water heat pump fits your specific layout and climate needs. A Bryant dealer can provide expert, personalized guidance, evaluate your existing heating and cooling infrastructure, and compare system options based on capacity, installation requirements, and expected operating conditions.
Discover Bryant Heat Pumps
Choose a Bryant heat pump for reliable, energy-efficient heating and cooling all year round. Known for their durability and advanced technology, Bryant heat pumps offer superior comfort while lowering energy costs. With quiet operation and smart features like variable-speed motors, Bryant heat pump systems ensure optimal temperature control. Backed by industry-leading warranties and professional installation from your local Bryant dealer, a Bryant heat pump is a long-term investment in comfort, efficiency, and peace of mind for your home.
Air To Water Heat Pump FAQs
Yes, modern air to water heat pumps are designed to operate efficiently even in freezing temperatures. Bryant's 33NM3 domestic hot water air-to-water heat pump includes features that ensure reliable performance throughout the winter, providing consistent warmth when you need it most
Savings vary based on your home’s size, insulation, local climate, and utility rates, but many homeowners see a reduction in their annual energy costs. The high efficiency of these systems often leads to long-term savings compared to traditional furnaces or boilers.
Air to water heat pumps require annual professional servicing to ensure they operate at peak efficiency. Regular maintenance includes checking refrigerant levels, cleaning coils, and inspecting electrical components, which helps extend the system's lifespan and maintain performance.
Yes. Many air-to-water heat pumps can provide cooling by circulating chilled water through radiant flooring, fan coils, or hydronic air handlers. The level of cooling depends on your home’s distribution system and whether it’s designed to handle chilled-water operation.
An air-to-water heat pump can be worth it if you want high efficiency, lower operating costs, and the flexibility to support both heating and cooling through a hydronic system. They’re especially valuable in homes with radiant floors or existing hydronic infrastructure, where they can deliver year-round comfort and strong long-term energy savings.
An air to water heat pump transfers extracted outdoor heat into a water-based distribution system (like radiators or radiant floors), while an air to air heat pump transfers that heat directly into the indoor air via ductwork or ductless wall units. Air to water systems also have the added benefit of providing domestic hot water.
With proper annual maintenance and professional installation, a high-quality air to water heat pump can reliably last 15 to 20 years. Their durable design and lack of combustion processes contribute to a long, efficient operational lifespan.
Yes, air to water heat pumps can often be integrated with existing traditional radiators. However, because heat pumps operate most efficiently at slightly lower water temperatures than conventional boilers, your local HVAC professional will need to evaluate your current radiators to ensure they are properly sized to comfortably heat your home.
An air to water heat pump is more energy-efficient than a gas boiler because it moves heat rather than generating it through combustion. Over time, this typically results in lower operating costs and a significantly reduced carbon footprint. Gas boilers may have a lower upfront cost and are better suited for homes without access to hydronic upgrades or where electricity costs are particularly high.
Many federal and state energy efficiency programs offer rebates for high-efficiency heat pump installations. Bryant recommends consulting with a local Bryant dealer to determine which incentives apply to your specific system and location.
