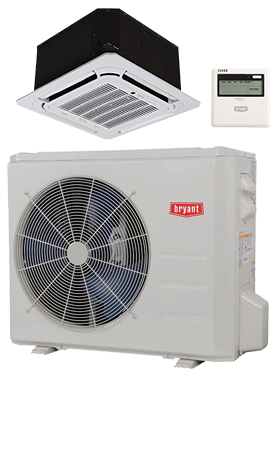

2016 R*C Cassette Ductless System

Improved Comfort from Above

The R*C Cassette Ductless System, part of the Preferred™ Series, is designed to operate quietly and unobtrusively from the ceiling of your preferred space. New for 2016, this system can pump out 100% of its capacity as temperatures drop to 5° F outside (in select sizes). It provides consistent, economical variable-speed comfort.
Product Line :
Ductless systems – Single Zone
Features
  • 100% Heating Capacity at 5° F (-15° C)*
  • Up to 20.0 SEER cooling efficiency
  • Up to 10.5 HSPF heating efficiency
  • Capacity sizes ranging from 9 to 18 BTUs
  • Line lengths 82-98 ft. depending on unit capacity
  • Variable Speed (Inverter) Compressor
  • 3 fan speeds
  • Base pan heater
  • Built-in condensate pump
  • Motorized louver allows fixed or oscillating motion
  • Auto restart after power failure
  • Indoor sound: as low as 34 dB(A)1
  • 46° F heating mode (heating setback)
  • Follow me
  • System diagnostics
  • Wireless remote control standard
  • Optional wired remote control
  • Improved outdoor serviceability
  • Compact footprint
  • 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2

1. Quietest size within each model group during low fan-speed operation.
2. If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
* Sizes 9 & 18 (208/230V)
Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 20.0 SEER/up to 13.0 EER/up to 10.5 HSPF
ENERGY STAR® Meets ENERGY STAR ® guidelines for high efficiency in select sizes

COMFORT MANAGEMENT

Cooling Outdoor range operates from -4° F up to 122° F
Heating Outdoor range operates from -22° F up to 86° F (Varies by unit size and voltage)

SOUND

Quiet Levels Indoor : as low as 34 dB(A)1, Outdoor: as low as 52.5 dB(A)2

CONVENIENCES

Restart Automatic after power outage
Notifications Advanced system diagnostics

TECHNOLOGY

Compressor Variable Speed Inverter, isolated for sound reduction
Control Wireless remote recommended
Protections Voltage, current
System Capacity 3/4 - 1 1/2 tons
Voltage 208/230V (Sizes 9-18)

AESTHETICS

Design White flush mounted indoor unit
Construction Durable, heavy gauge galvanized steel outdoor unit
Paint Baked-on, powder paint outdoor unit
Line Length Up to 98 ft.

MODELS

Full Model Numbers 38MAQBXXR--3/619REQXXXCBMA

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1. Quietest size within each model group during low fan-speed operation.
2. Quietest size within each model group during most common cooling operating condition.
  • 100% Heating Capacity at 5° F (-15° C)*
  • Up to 20.0 SEER cooling efficiency
  • Up to 10.5 HSPF heating efficiency
  • Capacity sizes ranging from 9 to 18 BTUs
  • Line lengths 82-98 ft. depending on unit capacity
  • Variable Speed (Inverter) Compressor
  • 3 fan speeds
  • Base pan heater
  • Built-in condensate pump
  • Motorized louver allows fixed or oscillating motion
  • Auto restart after power failure
  • Indoor sound: as low as 34 dB(A)1
  • 46° F heating mode (heating setback)
  • Follow me
  • System diagnostics
  • Wireless remote control standard
  • Optional wired remote control
  • Improved outdoor serviceability
  • Compact footprint
  • 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2

1. Quietest size within each model group during low fan-speed operation.
2. If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
* Sizes 9 & 18 (208/230V)

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 20.0 SEER/up to 13.0 EER/up to 10.5 HSPF
ENERGY STAR® Meets ENERGY STAR ® guidelines for high efficiency in select sizes

COMFORT MANAGEMENT

Cooling Outdoor range operates from -4° F up to 122° F
Heating Outdoor range operates from -22° F up to 86° F (Varies by unit size and voltage)

SOUND

Quiet Levels Indoor : as low as 34 dB(A)1, Outdoor: as low as 52.5 dB(A)2

CONVENIENCES

Restart Automatic after power outage
Notifications Advanced system diagnostics

TECHNOLOGY

Compressor Variable Speed Inverter, isolated for sound reduction
Control Wireless remote recommended
Protections Voltage, current
System Capacity 3/4 - 1 1/2 tons
Voltage 208/230V (Sizes 9-18)

AESTHETICS

Design White flush mounted indoor unit
Construction Durable, heavy gauge galvanized steel outdoor unit
Paint Baked-on, powder paint outdoor unit
Line Length Up to 98 ft.

MODELS

Full Model Numbers 38MAQBXXR--3/619REQXXXCBMA

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1. Quietest size within each model group during low fan-speed operation.
2. Quietest size within each model group during most common cooling operating condition.
