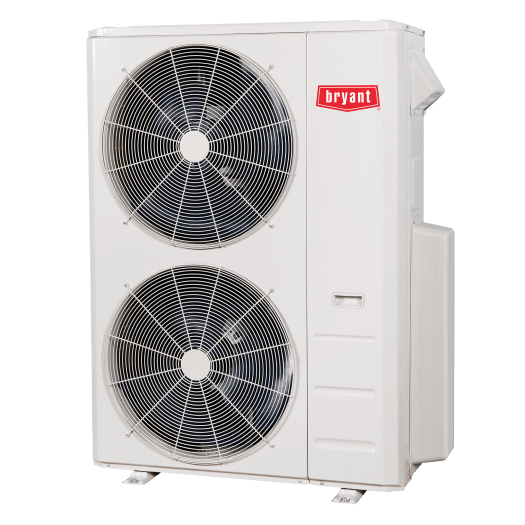

Preferred™ Multi-Zone Heat Pump with Basepan Heater
38MGRB

DELUXE COMFORT FOR UP TO FIVE SEPARATE SPACES, NO DUCTS REQUIRED

Perfect for a home without ductwork or a newly converted space, our PreferredTM Series multi-zone heat pump might be the right choice for you. As a part of the 38MGRB Multi-Zone Ductless System, you can use up to five indoor units supported by just one outdoor unit. The Inverter compressor delivers year-round comfort on the hottest summer days to colder, winter nights (98% capacity as temperatures down to 5° F when properly sized and matched with specific indoor units).
Energy Star® Qualified :
Some sizes qualified
COOLING EFFICIENCY :
Up to 23.9 SEER2
HEATING EFFICIENCY :
Up to 10.5 HSPF2
Features
  • Inverter Compressor
  • Up to 23.9 SEER2 cooling efficiency
  • Up to 10.5 HSPF2 heating efficiency
  • Select sizes are ENERGY STAR® certified based on indoor combinations
  • Available in 208/230V
  • Built-in basepan heater
  • Total piping lengths range from 131 ft. to 328 ft. (40 ~ 100 m) depending on unit size
  • Connects two to five multiple style indoor units (PreferredTM) to a single outdoor unit
  • Refrigerant leakage detection
  • Extremely quiet outdoor sound operation, as low as 62 decibels1
  • 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
  • Compatible units: 619PB High Wall, 40MBCQ Cassette, 40MBDQ Ducted, 40MBFQ Floor Console

1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
Specifications

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 23.9 SEER2/up to 13.9 EER2/up to 10.5 HSPF2
ENERGY STAR® Select sizes are ENERGY STAR® certified based on indoor unit combinations

COMFORT MANAGEMENT

Cooling Outdoor range operates from -22° F up to 122° F (-30° C up to 50° C)
Heating Outdoor range operates from -22° F up to 75° F (-30° C up to 24° C)

SOUND

Quiet Levels As low as 59 dB(A)1

CONVENIENCES

Notifications Advanced system diagnostics

TECHNOLOGY

Compressor Inverter, isolated for sound reduction
Protections Voltage, current, high pressure, and loss of charge
System Capacity 1.5, 3 & 4 Ton

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1 Quietest size within each model group during most common cooling operating condition.
  • Inverter Compressor
  • Up to 23.9 SEER2 cooling efficiency
  • Up to 10.5 HSPF2 heating efficiency
  • Select sizes are ENERGY STAR® certified based on indoor combinations
  • Available in 208/230V
  • Built-in basepan heater
  • Total piping lengths range from 131 ft. to 328 ft. (40 ~ 100 m) depending on unit size
  • Connects two to five multiple style indoor units (PreferredTM) to a single outdoor unit
  • Refrigerant leakage detection
  • Extremely quiet outdoor sound operation, as low as 62 decibels1
  • 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
  • Compatible units: 619PB High Wall, 40MBCQ Cassette, 40MBDQ Ducted, 40MBFQ Floor Console

1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

EFFICIENCY MANAGEMENT

Energy Efficiency Up to 23.9 SEER2/up to 13.9 EER2/up to 10.5 HSPF2
ENERGY STAR® Select sizes are ENERGY STAR® certified based on indoor unit combinations

COMFORT MANAGEMENT

Cooling Outdoor range operates from -22° F up to 122° F (-30° C up to 50° C)
Heating Outdoor range operates from -22° F up to 75° F (-30° C up to 24° C)

SOUND

Quiet Levels As low as 59 dB(A)1

CONVENIENCES

Notifications Advanced system diagnostics

TECHNOLOGY

Compressor Inverter, isolated for sound reduction
Protections Voltage, current, high pressure, and loss of charge
System Capacity 1.5, 3 & 4 Ton

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.

1 Quietest size within each model group during most common cooling operating condition.
