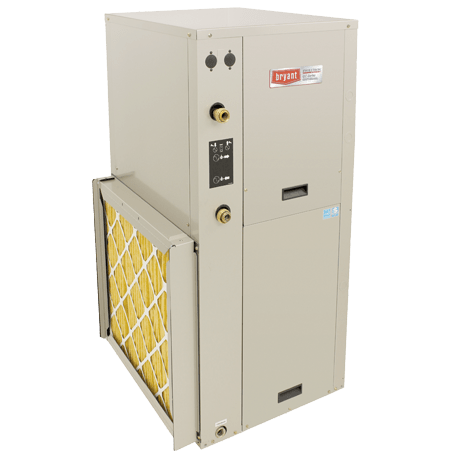

Evolution™ Variable-speed Geothermal Heat Pump
GC
Evolution™ Variable-speed Geothermal Heat Pump GC
High-Efficiency Models for Exceptional Comfort and Energy Savings
For the ultimate in quiet operation and comfort, consider the versatile and feature-rich Evolution Series GC models with two-stage compressor operation and variable-speed blower. Our top-of-the-line Evolution geothermal products deliver the highest efficiencies we offer. When installed with the Evolution Connex™ control you'll receive optimal summer dehumidification and even temperatures.
- EER Efficiency Range :
- 18.5 to 32.0 EER (closed loop); 23.1 to 37.0 EER (open loop)
- COP Efficiency Range :
- 3.8 to 4.7 COP (closed loop); 4.5 to 5.2 COP (open loop)
- Compressor Type :
- Two-Stage
Features
- Manage your utility costs with high-efficiency comfort (efficiency is unit size dependent): Closed loop cooling EER - Up to 32.0; Closed loop heating COP - Up to 4.7
- Optimal dehumidification capability with the Evolution Connex™ control
- Enjoy the ultra-quiet performance and even-temperature comfort of variable-speed air delivery
- Two-stage scroll compressor operation allows longer, more consistent cycles in lower stage for savings and comfort
- Superior summer dehumidification
- Smart startup for smoother operation
- Insulated cabinet and compressor blanket for quiet operation
- Wide operating temperature range with exceptional cold weather performance
- Corrosion-resistant coil for durability
- 2" MERV 13 filtration
- 10-year parts and labor limited warranty1
- Supplemental, domestic hot water generation
- Internally-mounted auxiliary heat
1To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.
Specifications
EFFICIENCY MANAGEMENT
Cooling Efficiency 18.5 to 32.0 EER (closed loop); 23.1 to 37.0 EER (open loop)
Heating Efficiency 3.8 to 4.7 COP (closed loop); 4.5 to 5.2 COP (open loop)
Heating and Cooling Stages Two-stage operation for efficiency and comfort
ENERGY STAR® ENERGY STAR ® qualified in all sizes
SOUND
Quiet Levels Quiet operation enhanced by full cabinet insulation; double-isolation compressor mounting and compressor sound blanket
CONVENIENCES
Filter Cabinet Built-in for easy filter changes
Maintenance Reminders With Evolution Connex™ control
TECHNOLOGY
Blower Motor High-efficiency variable-speed
Compressor Two-stage scroll
Control Board Microprocessor with compressor diagnostic capability
Refrigerant Puron® refrigerant
Refrigerant Management Thermostatic expansion valve
Protection Corrosion-resistant coil protection for long life
INSTALLATION
Positioning Vertical upflow, horizontal or vertical downflow units available
AESTHETICS
Capacity 2-6 tons
Construction Galvanized steel
Paint Baked-on urethane base coat and polyester top coat
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
