Preferred™ One Way Cassette Indoor Unit
40MCCAQ

RECESSED SOLUTION FOR ENERGY EFFICIENCY AND COMFORT. IDEAL BALANCE

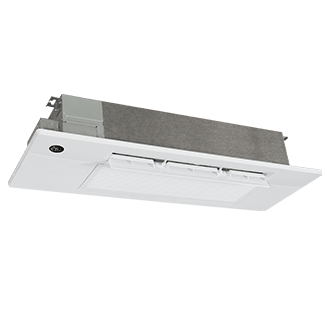

The Preferred Series 40MCCAQ One Way Cassette is perfect for converted spaces or room additions where ductwork is unavailable. It comfortably fits overhead and delivers quiet and unobtrusive heating and cooling. With the ability to sense temperature at your handheld remote, it places comfort precisely where you need it most. Plus, with four available fan speeds, it delivers the perfect amount of airflow. Versatile in design, it's an essential component for both single and multi-zone systems.
COOLING EFFICIENCY :
Dependent upon outdoor unit pairing
HEATING EFFICIENCY :
Dependent upon outdoor unit pairing
Features
  • Sizes: 06/ 09 / 12 / 18
  • Available in 208/230V
  • Compact size and can be installed between 16" joists
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Louver control (fixed or swing)
  • Four fan speeds
  • Senses temperature at handheld remote
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 28.8 decibels1
  • Built-in condensate lift pump
  • Anti-corrosive fin coating
  • 10-year parts limited warranty upon registration2

1 Quietest size within each model group during low fan-speed operation

2 To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

Specifications

PERFORMANCE

  • Quiet indoor operation, as low as 28.8 decibels1

CAPACITIES

  • 0.5 - 1.5 Ton

REQUIREMENTS

  • 208/230V

1 Quietest size within each model group during low fan-speed operation

  • Sizes: 06/ 09 / 12 / 18
  • Available in 208/230V
  • Compact size and can be installed between 16" joists
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Louver control (fixed or swing)
  • Four fan speeds
  • Senses temperature at handheld remote
  • Heating Setback (46° F Heating Mode)
  • Quiet indoor operation, as low as 28.8 decibels1
  • Built-in condensate lift pump
  • Anti-corrosive fin coating
  • 10-year parts limited warranty upon registration2

1 Quietest size within each model group during low fan-speed operation

2 To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.

PERFORMANCE

  • Quiet indoor operation, as low as 28.8 decibels1

CAPACITIES

  • 0.5 - 1.5 Ton

REQUIREMENTS

  • 208/230V

1 Quietest size within each model group during low fan-speed operation
