Domestic Hot Water Air-To-Water Heat Pump
Domestic Hot Water Air-To-Water Heat Pump 33NM3
A Sustainable Heating, Cooling and Domestic Hot Water Solution

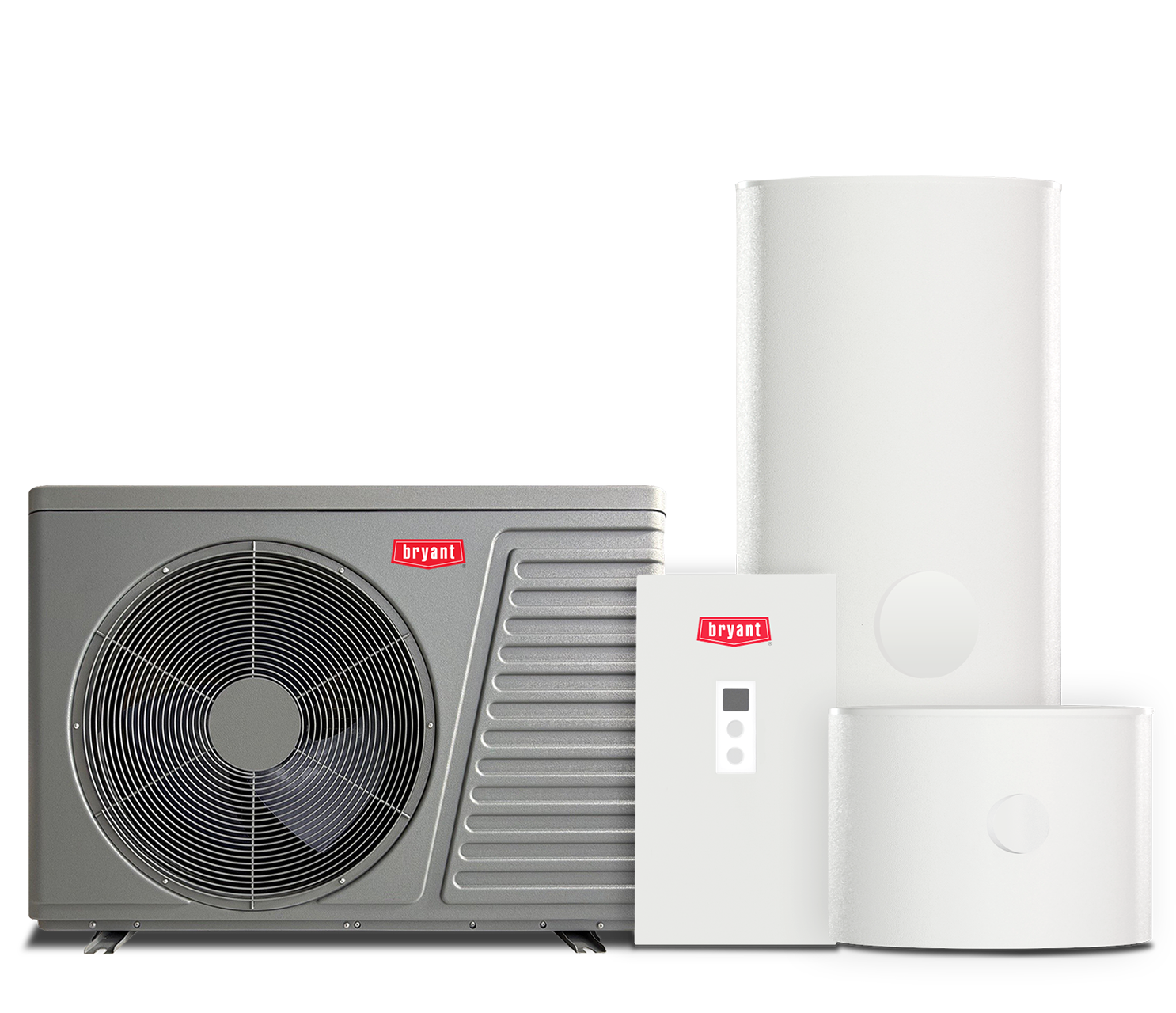

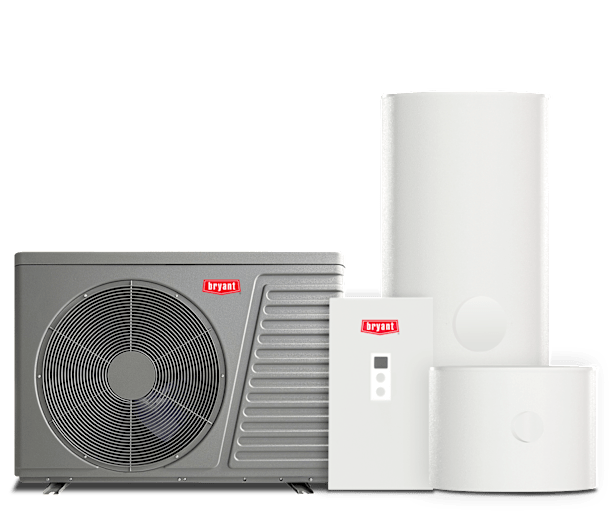

The Bryant 33NM3 air-to-water heat pump system is a true all-in-one solution, including:
- Indoor unit
- Outdoor unit
- Buffer tank
- Domestic hot water tank (optional)
It’s the easiest way to add a heat pump with hot water. This unit is installation-ready, requiring no additional hydronic specialties, and offers a low cost of ownership thanks to minimal maintenance and efficient operation. The D3CMW can be paired with a furnace or a boiler utilizing the dual fuel switch.
- COOLING EFFICIENCY :
- Up to 16.8 EER
- HEATING EFFICIENCY :
- Up to 4.9 COP
- Compressor Type :
- Variable-speed rotary
- Sound Rating (Decibels) :
- as low as 52
Features
- Adaptable system works in a variety of application types (forced-air heating and cooling, retrofitting a legacy radiant heating system, driveway heating system, or a combination)
- Ready to install without additional hydronic specialties
- Carries a low cost of ownership with minimal maintenance and low operating costs.
- Auxiliary electric heat is integrated into the indoor unit
- Quiet performance with sound levels as low as 52 decibels
- Compact Monobloc design with R-32 refrigerant for high efficiency, reduced environmental impact (GWP of 675 kg CO₂e), and simplified installation and service
- Brazed plate heat exchanger for Enhanced Vapor Injection (EVI)system
- Available in 208/230V
- Warranty: Compressor in outdoor unit: 5 years. Indoor unit and outdoor unit: 3 years. Fitting: 1 year. Buffer tank: 5 years. Buffer tanks parts and accessories (including but not limited to insulation jacket and tank cover): 2 years. Water Heater Tank, Coil, and Heat Exchanger: 10 years. Water Heater Tank Parts and Accessories: 2 years. Subsequent owners receive the remainder of original owner’s warranty term.
- For consumers residing in Quebec, air conditioners and heat pumps are automatically covered by a warranty of good working order granted by the Quebec Consumer Protection Act for a duration of six years.
- Important Notice for Consumers in Quebec - Replacement Parts/Repair Services/Information Necessary to Maintain or Repair Goods: Bryant does not guarantee the availability of replacement parts, repair services, or the information necessary to maintain or repair the goods.
Specifications
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 4.9 COP and 16.8 EER for premium energy savings
Hybrid Heat® system capable Can be paired with a furnace or a boiler utilizing the “dual fuel switch”
SOUND
Quiet levels During lowest capacity cooling operating condition: 52 dB
TECHNOLOGY
Compressor Inverter-driven variable-speed rotary compressor
Refrigerant R-32 refrigerant
Capacity 1.5-4.3 tons/cooling; 20.5-58.0 MBH/heating
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
- Adaptable system works in a variety of application types (forced-air heating and cooling, retrofitting a legacy radiant heating system, driveway heating system, or a combination)
- Ready to install without additional hydronic specialties
- Carries a low cost of ownership with minimal maintenance and low operating costs.
- Auxiliary electric heat is integrated into the indoor unit
- Quiet performance with sound levels as low as 52 decibels
- Compact Monobloc design with R-32 refrigerant for high efficiency, reduced environmental impact (GWP of 675 kg CO₂e), and simplified installation and service
- Brazed plate heat exchanger for Enhanced Vapor Injection (EVI)system
- Available in 208/230V
- Warranty: Compressor in outdoor unit: 5 years. Indoor unit and outdoor unit: 3 years. Fitting: 1 year. Buffer tank: 5 years. Buffer tanks parts and accessories (including but not limited to insulation jacket and tank cover): 2 years. Water Heater Tank, Coil, and Heat Exchanger: 10 years. Water Heater Tank Parts and Accessories: 2 years. Subsequent owners receive the remainder of original owner’s warranty term.
- For consumers residing in Quebec, air conditioners and heat pumps are automatically covered by a warranty of good working order granted by the Quebec Consumer Protection Act for a duration of six years.
- Important Notice for Consumers in Quebec - Replacement Parts/Repair Services/Information Necessary to Maintain or Repair Goods: Bryant does not guarantee the availability of replacement parts, repair services, or the information necessary to maintain or repair the goods.
EFFICIENCY MANAGEMENT
Energy Efficiency Up to 4.9 COP and 16.8 EER for premium energy savings
Hybrid Heat® system capable Can be paired with a furnace or a boiler utilizing the “dual fuel switch”
SOUND
Quiet levels During lowest capacity cooling operating condition: 52 dB
TECHNOLOGY
Compressor Inverter-driven variable-speed rotary compressor
Refrigerant R-32 refrigerant
Capacity 1.5-4.3 tons/cooling; 20.5-58.0 MBH/heating
*Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
