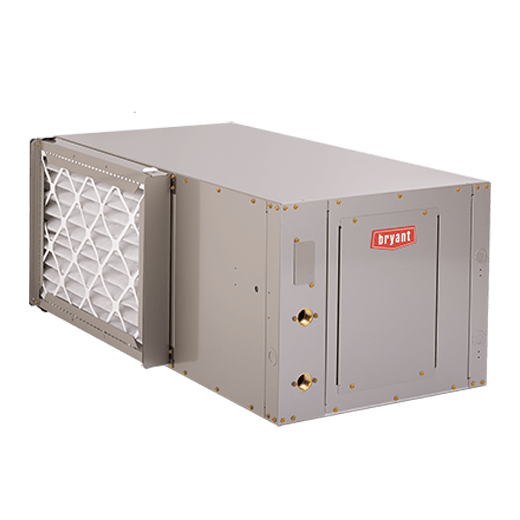

Evolution™ Variable-speed Geothermal Heat Pump

GCA

High-Efficiency Models for Exceptional Comfort and Energy Savings

For the ultimate in quiet operation and comfort, consider the versatile and feature-rich Evolution Series GCA models with two-stage compressor operation and variable-speed blower. Our top-of-the-line Evolution geothermal products deliver the highest efficiencies we offer. When installed with the Evolution™ Connex™ Control you'll receive optimal summer dehumidification and even temperatures.

Energy Star :: All sizes qualified
EER Efficiency Range :: Up to 27.0 EER (closed loop); up to 37.0 EER (open loop)
COP Efficiency Range :: Up to 4.4 COP (closed loop); up to 5.2 COP (open loop)
Compressor Type :: Two-Stage

FIND A DEALER

Features

Manage your utility costs with high-efficiency comfort (efficiency is unit size dependent): Closed loop cooling EER - Up to 27.0; Closed loop heating COP - Up to 4.4
Optimal dehumidification capability with the Evolution™ Connex™ Control
Enjoy the ultra-quiet performance and even-temperature comfort of variable-speed air delivery
Two-stage scroll compressor operation allows longer, more consistent cycles in lower stage for savings and comfort
Superior summer dehumidification
Smart startup for smoother operation
Insulated cabinet and compressor blanket for quiet operation
Wide operating temperature range with exceptional cold weather performance
Corrosion-resistant coil for durability
2" MERV 8 filtration
Smart startup add-on for smoother operation
Passive dehumidification standard
Uses lower global warming potential Puron Advance™ refrigerant
Active Puron Advance™ A2l dissipation system factory installed
Filter cabinet built-in for easy filter changes
10-year parts and 5-year labor limited warranty¹

OPTIONAL FEATURES

Supplemental, domestic hot water generation
Internally-mounted auxiliary heat

¹To the original owner, when installed in a residence, a 10-year parts and labor limited warranty upon timely registration of equipment. Warranty period is 10 years on parts and 5 years on labor if not registered within 90 days of installation. Original owners residing in jurisdictions that prohibit warranty benefits conditioned on registration will automatically receive a 10-year parts and labor limited warranty. See warranty certificate for details.

Specifications

EFFICIENCY MANAGEMENT

Cooling Efficiency Up to 27.0 EER (closed loop); up to 37.0 EER (open loop)

Heating Efficiency Up to 4.4 COP (closed loop); up to 5.2 COP (open loop)

Heating and Cooling Stages Two-stage operation for efficiency and comfort

ENERGY STAR^® ENERGY STAR^® qualified in all sizes

SOUND

Quiet Levels Quiet operation enhanced by full cabinet insulation; double-isolation compressor mounting and compressor sound blanket

CONVENIENCES

Filter Cabinet Built-in for easy filter changes

Maintenance Reminders with Evolution™ Connex™ Control

TECHNOLOGY

Blower Motor High-efficiency variable-speed

Compressor Two-stage scroll

Control Board Microprocessor with compressor diagnostic capability

Refrigerant Puron Advance™ refrigerant

Refrigerant Management Thermostatic expansion valve

Protection Corrosion-resistant coil protection for long life

INSTALLATION

Positioning Vertical upflow, horizontal or vertical downflow units available

AESTHETICS

Capacity 2-6 tons

Construction Galvanized steel

Paint Baked-on urethane base coat and polyester top coat

Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
