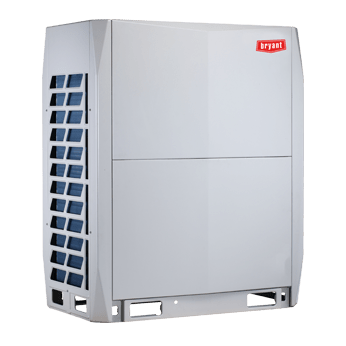

Heat Pump Outdoor Unit

The Bryant VRF heat pump system is a combination of an outdoor unit with multiple style indoor units connected by refrigerant piping and wiring. Heat pump capacity ranges from 6 tons up to 36 tons in a modular design, available as single, double or triple module.
Features

Product Features

  • Available in 6, 8, 10, 12 ton single module which can be combined up to 36-tons capacity
  • Ability to connect up to 64 multiple style indoor units with a triple module outdoor unit
  • Piping flexibility up to 3280 ft
  • High performance outdoor units with all inverter-driven scroll compressor
  • DC inverter condenser fan motor
  • 208/230-3-60Hz or 460-3-60Hz voltage
  • Cooling ambient operating temperature is 14⁰ F to 122⁰ F and heating ambient operating temperature is -4⁰ F to 60⁰ F
  • Connected capacity is up to 135%

Reliability Features

  • All equipment wiring complies with NEC requirements
  • Unit constructed in accordance with ETL requirements
  • Unit performance is in accordance with AHRI 1230 standards
  • Compressor and condenser fan motor are inverter driven
  • Finned tube heat exchanger
  • Suitable for R-410a refrigerant

Installation Features

  • System utilizes 2-pipes to connect to up to 64 indoor units
  • Integrated controls design allows for complete system control
  • System can be auto addressed
  • System utilize quick connect controls system
Specifications

Warranty

Effective 8/1/24, the warranty for our VRF equipment will include an opportunity for a 10-year parts and compressor limited warranty. If not registered within 90 days, the warranty will be a 5-year parts and 7-year compressor limited warranty.1 See warranty certificate for details.

1Except for residential applications in California and Quebec and other jurisdictions that prohibit warranty benefits conditioned on registration.

Product Features

  • Available in 6, 8, 10, 12 ton single module which can be combined up to 36-tons capacity
  • Ability to connect up to 64 multiple style indoor units with a triple module outdoor unit
  • Piping flexibility up to 3280 ft
  • High performance outdoor units with all inverter-driven scroll compressor
  • DC inverter condenser fan motor
  • 208/230-3-60Hz or 460-3-60Hz voltage
  • Cooling ambient operating temperature is 14⁰ F to 122⁰ F and heating ambient operating temperature is -4⁰ F to 60⁰ F
  • Connected capacity is up to 135%

Reliability Features

  • All equipment wiring complies with NEC requirements
  • Unit constructed in accordance with ETL requirements
  • Unit performance is in accordance with AHRI 1230 standards
  • Compressor and condenser fan motor are inverter driven
  • Finned tube heat exchanger
  • Suitable for R-410a refrigerant

Installation Features

  • System utilizes 2-pipes to connect to up to 64 indoor units
  • Integrated controls design allows for complete system control
  • System can be auto addressed
  • System utilize quick connect controls system

Warranty

Effective 8/1/24, the warranty for our VRF equipment will include an opportunity for a 10-year parts and compressor limited warranty. If not registered within 90 days, the warranty will be a 5-year parts and 7-year compressor limited warranty.1 See warranty certificate for details.

1Except for residential applications in California and Quebec and other jurisdictions that prohibit warranty benefits conditioned on registration.
Documents

California residents please see Proposition 65

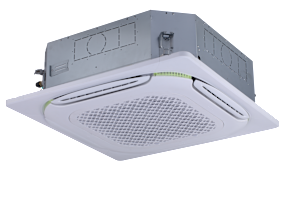

Compatible Solutions To Fit Your Comfort & Aesthetic Needs
